HYDRAFORE W-2Q
Compressed Air Driven Hydraulic Pipe Bender (1/2" - 2")
The Air Hydraulic Pipe Benders can be operated by air compressor or by hand. These benders are for precision cold bending of thick-walled pipes (gas, water and steam pipes, non-heated black iron pipes, galvanized pipes, schedule 40 & 80) up to 900 following GB/T 3091,DIN 2440,EN 10255,BS1387 standards.
- Capable of bending angles from 0° to 90° on pipes ranging from 1/2”to 4”.
- Cold bending, no pre-warming of pipe is required.
- Works quicker with air compressor.
- Can be operated by hand when air compressor is not available.
- Rugged construction for use in tough work sites.
- Fast and easy setup, simple to use.

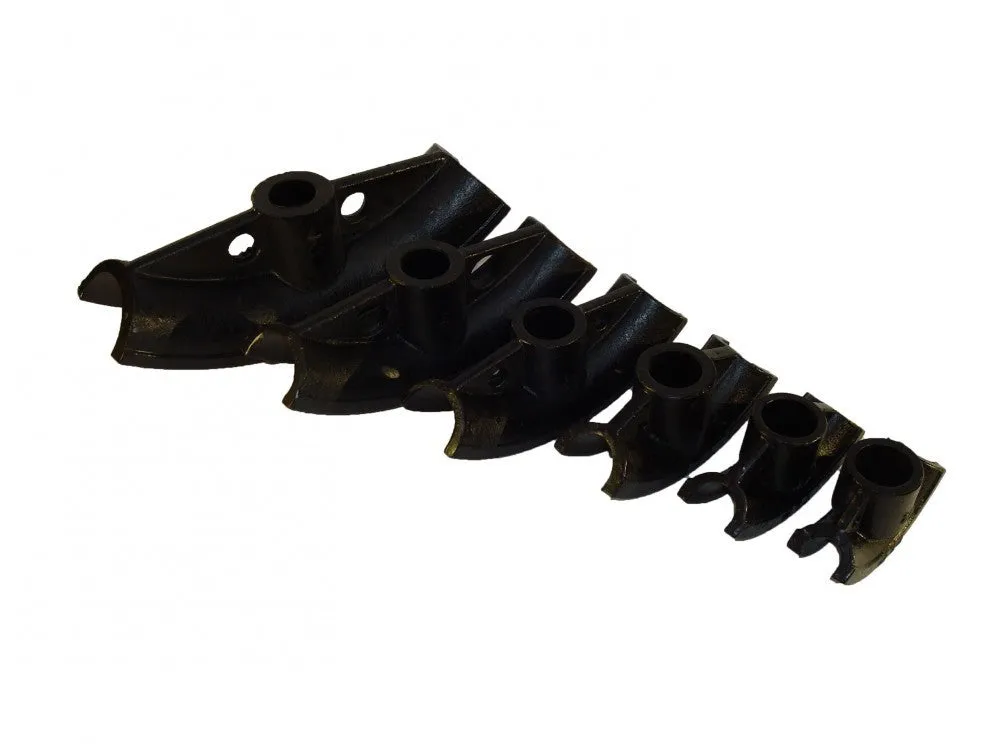

- Supplied in a wooden case with a set of bending shoes and service pack.
| Technical parameters: | |
| Model: | W-2Q |
| Capacity: | 13 T |
| Max stroke: | 10" |
| Air pressure: | 120 psi |

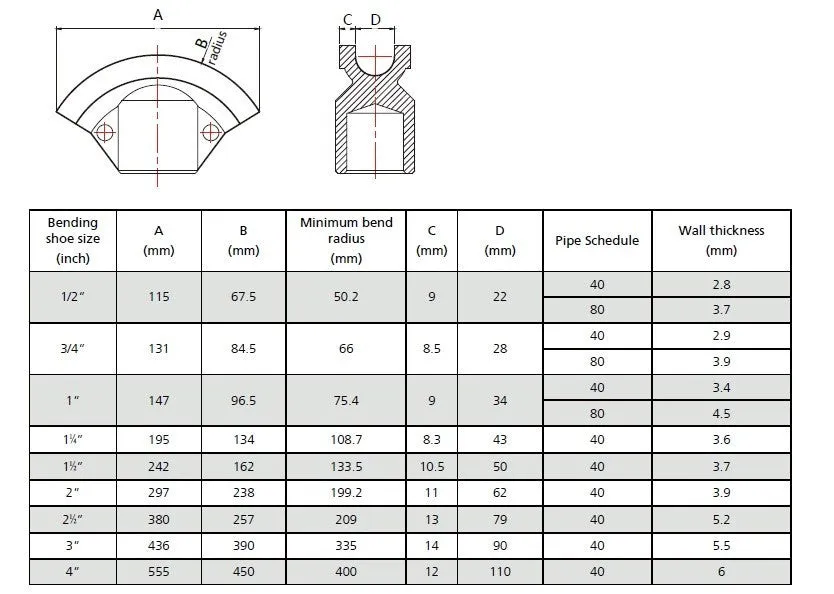

| Bending formers: | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
| Pipe wall thickness: | 0.10" - 0.20" |
| Weight: | 115 lbs |
